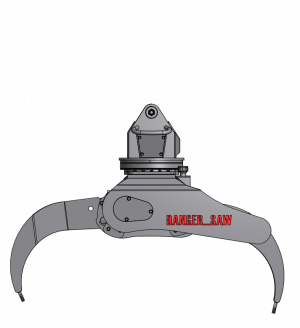

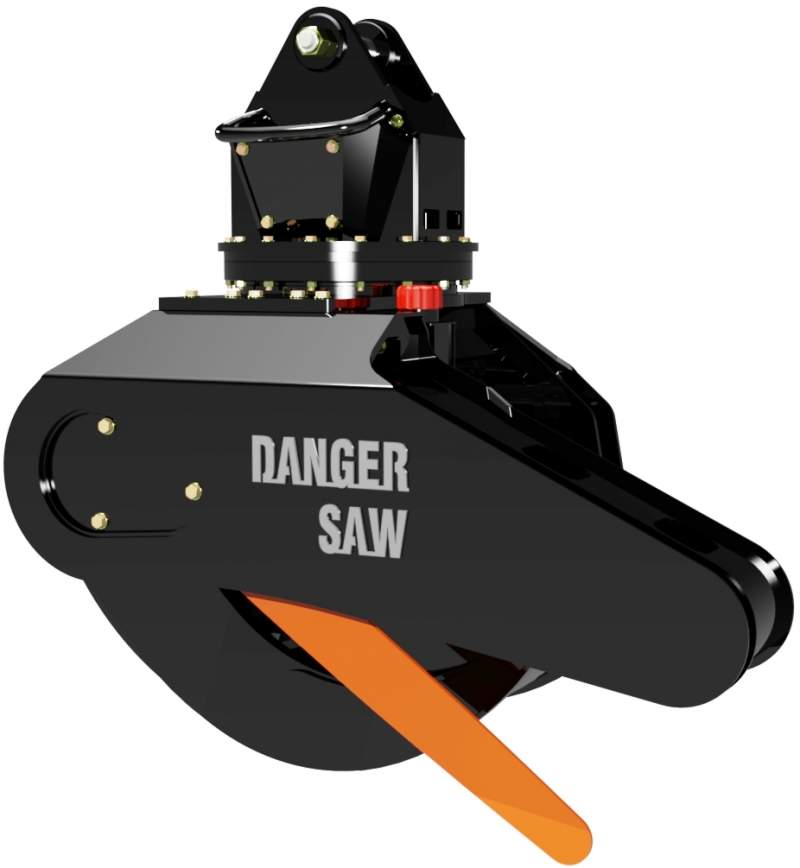

Rotating Log Grapple 30t 2300s

The ENSIGN 30T 2300S Grapple is a wide bodied Continuous Rotating Grapple with the addition of a High Speed Hydraulic Saw Unit designed to be fitted to a Hydraulic Crawler Excavator modified for Forestry Harvesting or a purpose built Forestry Log Loader in the 25 to 35 tonne class. This versatile grapple allows a skilled operator to carry out all log handling operations including cutting to a mark, cutting slovens, sorting, stacking, and loading.

Download PDF

SAW BAR LENGTH - 43"

CAPACITY - 0.65m²

MAX SAW CUT - Ø820mm

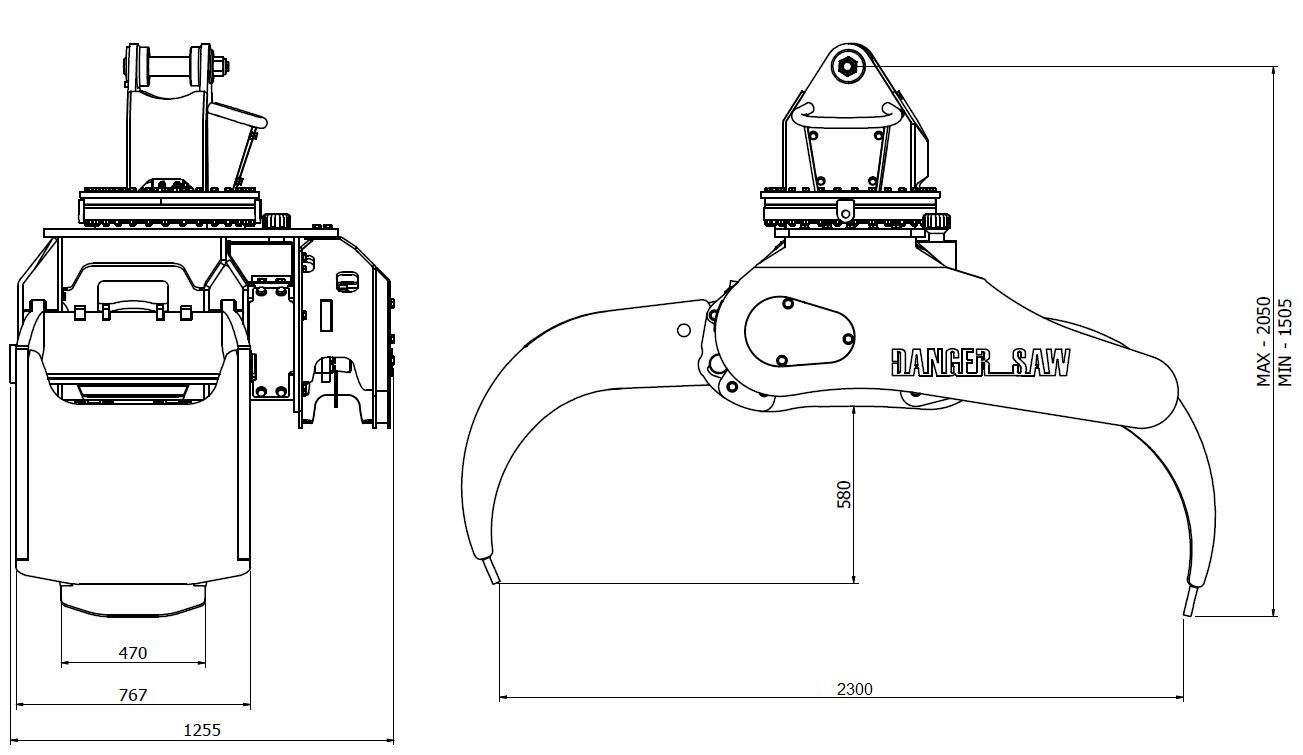

MAX CLAMP OPENING: 2300mm

MIN LOG GRIP - Ø150mm

APPROX. WEIGHT - 1950 kg

HYDRAULIC SLEW MOTOR
Displacement 310cc, Maximum flow 40L/min.

HYDRAULIC PRESSURE
Clamp Arm Circuit: 230 Bar (3500psi)

Slew Motor : 90 Bar (1300psi)
Saw Unit Motor: 270 Bar (4000psi)
