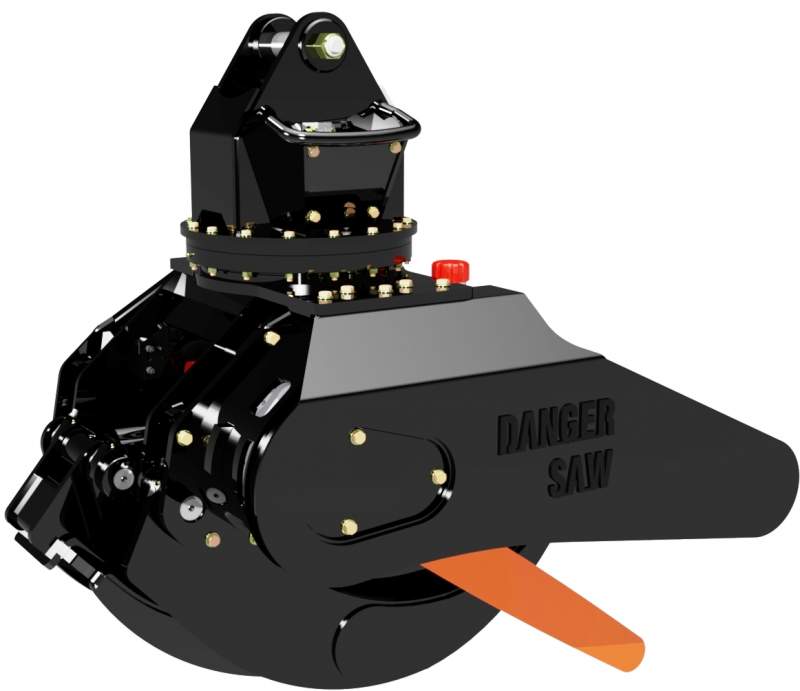

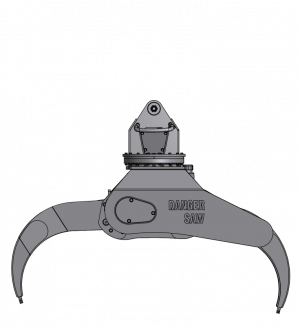

Rotating Log Grapple 20T 2300s

The ENSIGN 20T 2300S Grapple is a wide bodied Continuous Rotating Grapple with the addition of a High Speed Hydraulic Saw Unit designed to be fitted to a Hydraulic Crawler Excavator modified for Forestry Harvesting or a purpose built Forestry Log Loader in the 20 to 25 tonne class. This versatile grapple allows a skilled operator to carry out all log handling operations including cutting to a mark, cutting slovens, sorting, stacking, and loading.

Download PDF

Specificatinos:

SAW BAR LENGTH - 43"

MAX SAW CUT - Ø820mm

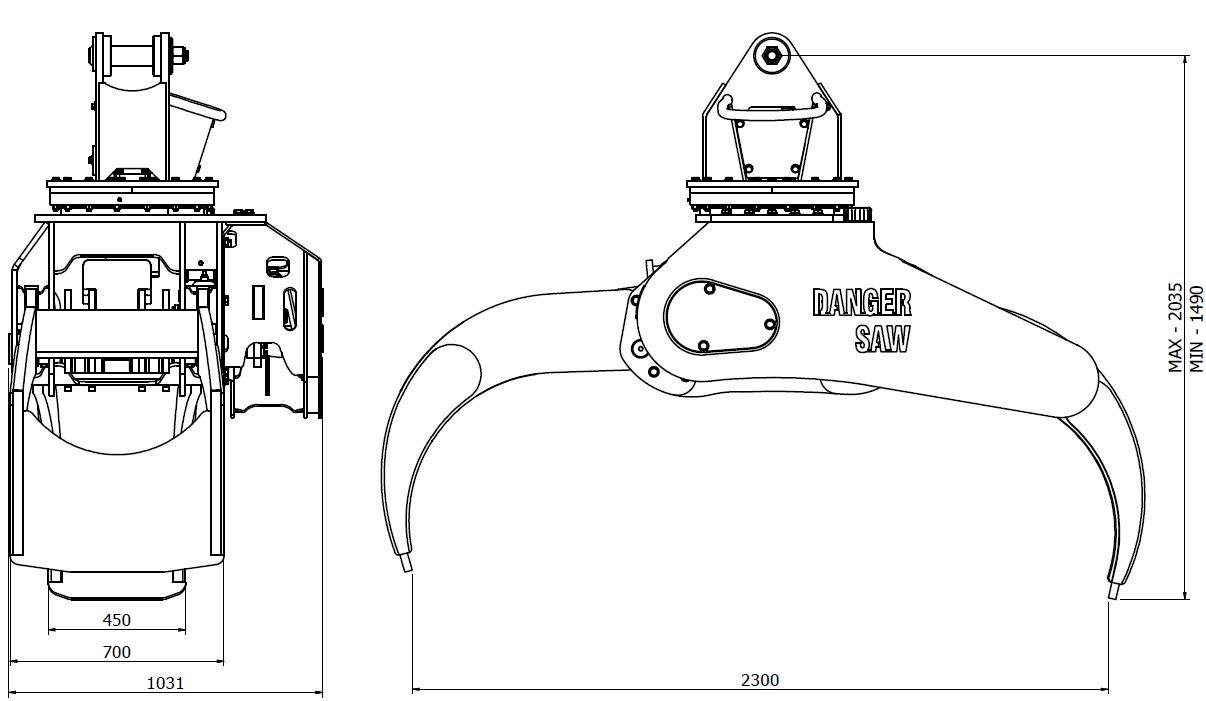

MAX CLAMP OPENING: 2300mm

MIN LOG GRIP - Ø150mm

APPROX. WEIGHT - 1690 kg

HYDRAULIC SLEW MOTOR
Displacement 310cc, Maximum flow 40L/min.

HYDRAULIC PRESSURE
Clamp Arm Circuit: 230 Bar (3500psi)

Slew Motor : 90 Bar (1300psi)
Saw Unit Motor: 270 Bar (4000psi)

SLEW BEARING & PINION
Hardened Pinion 23T Module 4
Hardened Ring Gear: 53t Max Rating

CLAMP ARM CYLINDERS
Ø4½" Bore x ⅜" Thick Cylinder Wall
Ø2¼" High Tensile Spear

PIVOT PINS
Clamp: Ø2¼" Hard Chromed, Ground

ROTARY DISTRIBUTOR VALVE
Ø4½" Bore, 5 Port
Hard Chromed and Honed Housing
Bronze Overlaid Steel Stem
